7Pin male and female magnetic connector for smart robot

Nazwa marki:	UPE
Numer modelu:	7P-2,54PH-4,0H
MOQ:	5000
Ceny:	$1-$5
Szczegóły opakowania:	Worki PE
Warunki płatności:	T/T

Szczegółowe informacje

Opis produktu

Szczegółowe informacje

Miejsce pochodzenia:

Chiny

Orzecznictwo:

ISO9002

Nazwa:

Złącza magnetyczne

Tworzywo:

PA46/PA9T, Mosiądz C3604, SUS304, NdFeB N52

Volatge:

12 V

Aktualny:

Życie mechaniczne:

10000 cykl min.

siła:

35±10gf na wysokości roboczej

Opór kontaktowy:

50mΩ Max (PIN)

Test w komorze solnej:

48h

Wytrzymuje wysoką temperaturę:

260°C

Temperatura robocza:

-40 ~ 85 ° C.

Kolor:

czarno żółty

Możliwość Supply:

5kpcs/dzień

Podkreślić:

7Pin magnetic connector for smart robot

male female magnetic robot connector

smart robot magnetic charging connector

Opis produktu

7-Pin Magnetic Connector for Smart Robots

Professional 7-pin male and female magnetic connectors designed for smart robot applications, manufactured by Union Precision Electronics Co., Ltd.

Technical Specifications

Materials & Construction

Plunger & Barrel: Brass C3604
Spring: SUS304 stainless steel
Housing: PA46/PA9T engineering plastic
Plating: 3μ" gold over 50μ" nickel

Electrical Properties

Rated Current & Voltage: DC 12V; 2A
Contact Resistance: 50mΩ maximum at working height

Temperature & Durability

Withstanding High Temperature: 260°C
Operational Temperature: -40°C to 85°C
Mechanical Force: 35±10gf at working height
Durability: 10,000 cycles minimum

Detailed Specifications

Pin Count	7-pin or customized
Pitch	2.54mm
Type	Right angle
Magnet Material	Neodymium iron boron
Magnet Grade	N52 (as required)
Mechanical Life	10,000 cycles minimum
Salt Spray Test	48 hours
Certification	ROHS or REACH compliant
Testing	100% open and short circuit test

Product Images

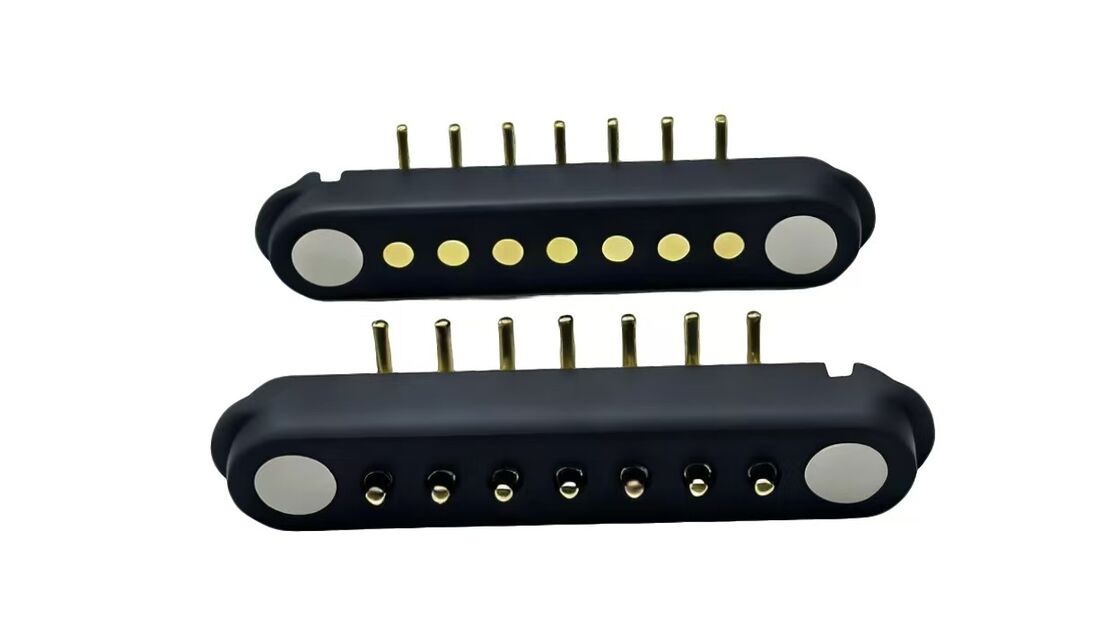

7-Pin Male Magnetic Connector

7-Pin Female Magnetic Connector

Product Advantages

Humanized design with automatic magnetic adsorption connection
Anti-fall protection for easy removal without device damage
Extended lifespan: 100,000-200,000 cycles
Waterproof design: Female end provides IPX8 dustproof and waterproof protection
Fast charging capability: 5A-10A design for large current transmission
Customizable appearance to match customer device design
Anti-short circuit structure with foolproof protection
High-frequency signal transmission replacing traditional USB 2.0, HDMI 1.3 functions

Applications

Wearable devices, smart watches, Bluetooth headsets, and charging cables
Medical equipment, wireless devices, and data communications equipment
Telecommunications, automation, and industrial equipment
Aviation, aerospace electronics, and military communications
Automotive, car navigation, and test measurement equipment
Consumer electronics including mobile phones, tablets, cameras, and portable devices

Ordering & Shipping Information

Payment Methods: T/T, PayPal, OCBC
Sample Lead Time: Inventory sample 2-3 days / Customized sample 5-7 days
Production Lead Time: 10-15 working days
Markets Served: America, Europe, Asia, South Africa
Trade Term: EXW
Services: High quality with competitive pricing, OEM service, custom sizes and designs
