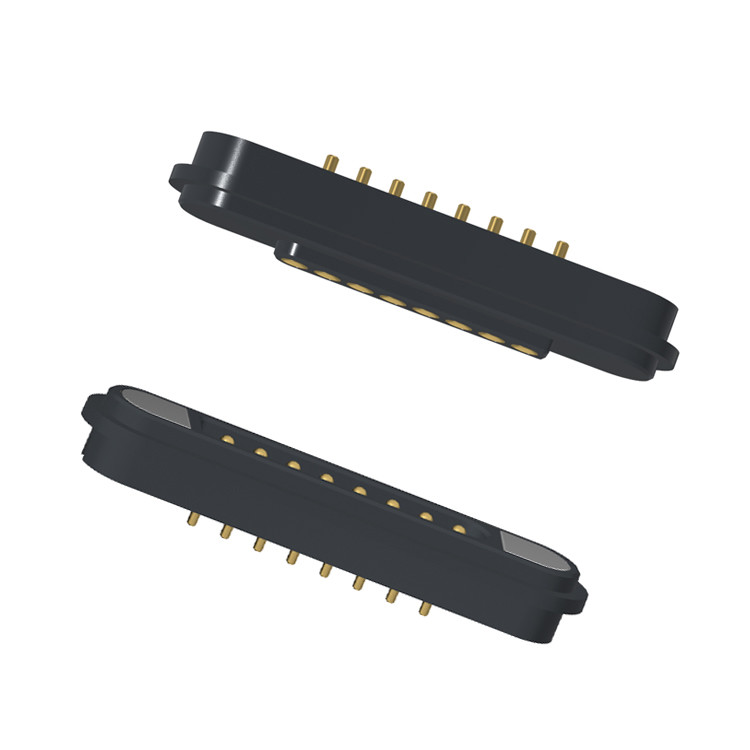

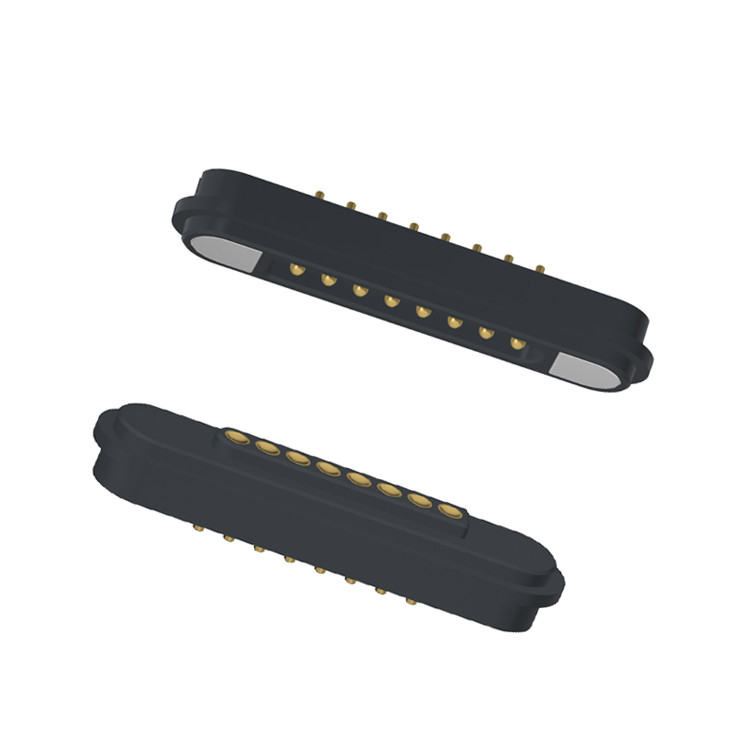

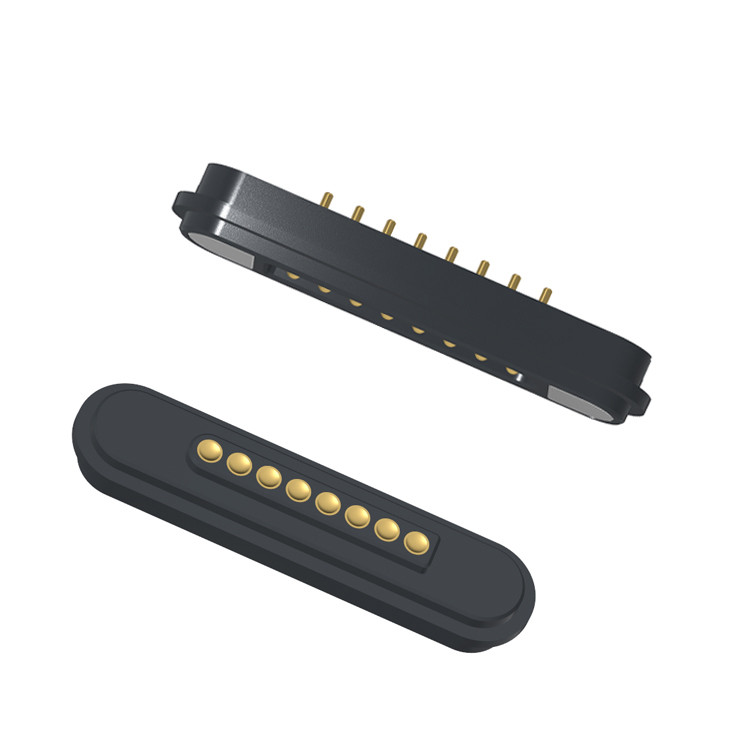

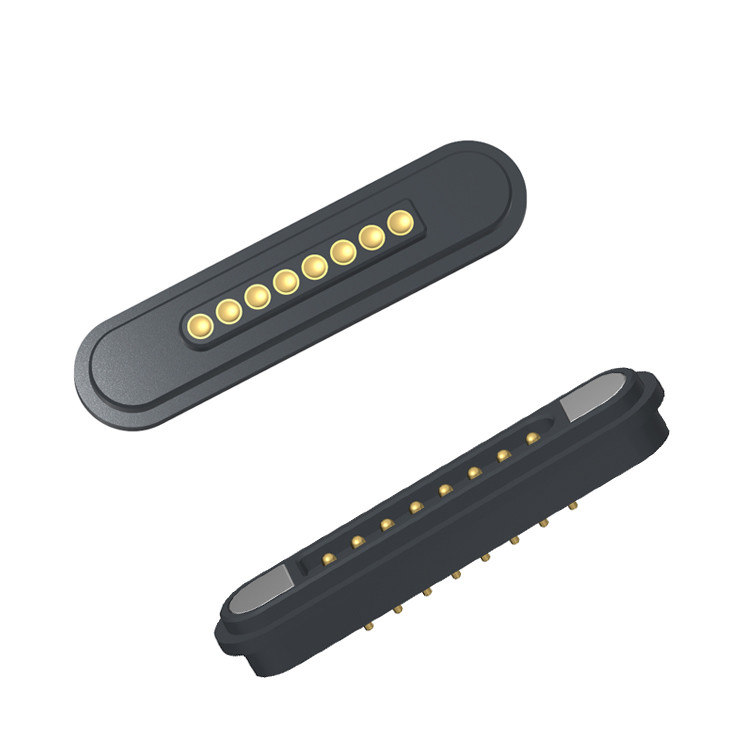

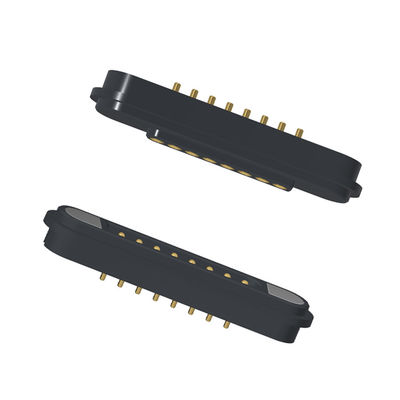

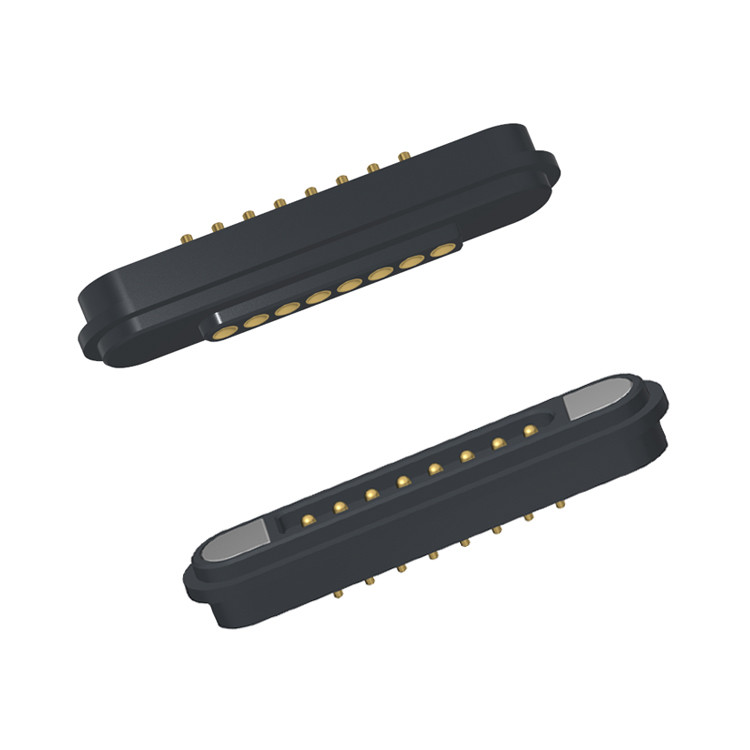

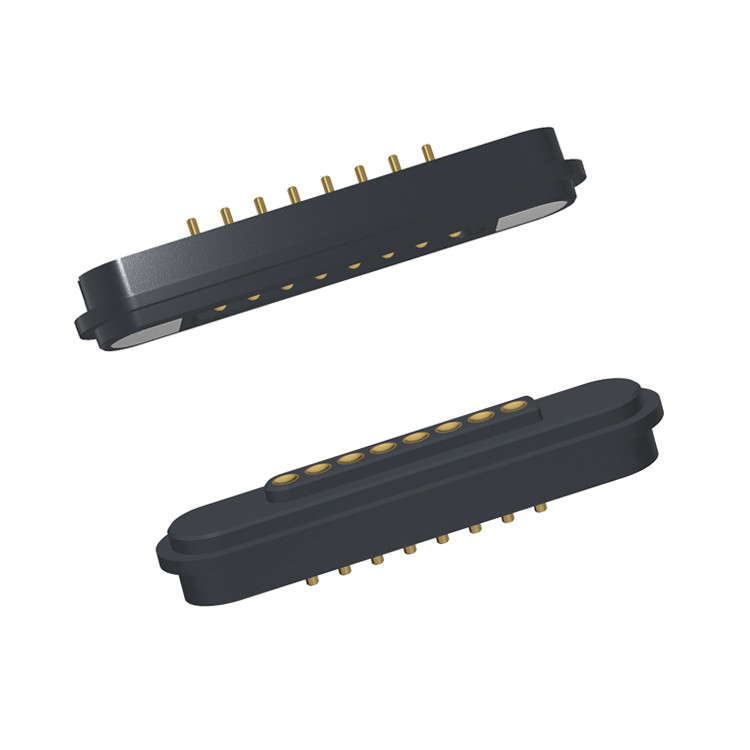

Rectangular 8Pin Magnetic Electrical Connector For Bbicycle Electronic Systems

Rectangular 8Pin Magnetic Electrical Connector For Bbicycle Electronic Systems.

UPE – Professional Magnetic Connector & Cable Solutions Manufacturer

UPE is professional magnetic connector & magnetic cable connector manufacturer.
We have our own professional designers to meet any of your requirements and provide magnetic connector customization service. Different magnetic pogo pin connector products and solutions can be designed according to different customer needs.

To ensure the contact mechanical life of the pogo pin, NEVER compress it beyond the defined working stroke specified in the drawing. Over-compression can damage the internal spring, leading to reduced performance or failure.

Materials:

Housing: Black HTN UL94V-0,HTN (High-Temperature Nylon),UL94V-0 Flame-Retardant

Pogo Pin: Brass C6801 Plating Au 0.125um,High Conductivity, Corrosion Resistance
Female pin: Brass Plating Au 0.125um

Magnet: N52 NdFeB Plating Ni Cu Ni

Mechanical:

Contact force:80g±20g at 1.0mm working storke

Full storke: 1.1mm

Male and female adsorption Life test: 10,000cycle

Electrical:

Rated voltage:DC12V; Rated voltage: 3AMax.

Contact resistance of spring pin: 50 milliohm Max.

Environmental performance:

Temperature tolerance:260℃

Operation Temperature: -25℃ to +80℃

Environmental Test: Salt Spray 48 hours

8Pin Male Magnetic Connectors & Female Magnetic Connector Parameter:

8Pin Male Magnetic Connector Technical Drawing

8Pin Female Magnetic Connector Technical Drawing

Advantages of Magnetic Connector:

1)Automatic adsorption connected experience; Easy operation;

2)Uses a magnetic interface to remove the device easier.

3)High life cycle. It supports 50,000-300,000 reattachment life times;

4)It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);

5)Support a high current (3A-20A), faster recharge;

6)Excellent corrosion rating (48H-120H) meet the harsh environments；

8)Shape customized to meet with product shape matching, improve product selling point;

9)Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish

the direction( It is user-oriented and user-friendly)

10)Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);

11)Development time is short, low-cost mold for customization;

12)Provide a reliable high RF signal transmission. Our connector is USB 2.0

Magnetic connector products application:

1.Wearable Devices & Portable Electronics:

.Devices: Smartwatches, Fitness Trackers, Smart Wristbands (Kids/Adults), Wearable Phones/Mobile Devices, Bluetooth Headsets, VR/AR Headsets, Smart Glasses.

.Benefits: Extremely high value here. Waterproofing (IP67/IP68) is easier to maintain. Withstands sweat and frequent connection cycles. Prevents damage from tripping over cables. Ideal for charging while sleeping (e.g., watches). Easy for children or users with dexterity issues.

2.Medical Equipment:

.Devices: Portable Monitors, Wearable Sensors, Diagnostic Equipment, Patient Bedside Devices, Handheld Scanners, Rechargeable Surgical Tools.

.Benefits: Facilitates quick disinfection/cleaning around the sealed socket. Prevents accidental disconnection critical for monitoring. Safe and easy connection for patients/staff. Reduces port damage from repeated use.

3.Industrial, Automation & Test Equipment:

.Devices: Handheld Scanners/PDAs, Portable Test Meters, Sensors, Robotics (docking/charging), Control Panels, Rugged Tablets, Field Service Equipment.

.Benefits: Excellent vibration/shock resistance. Sealed connectors withstand harsh environments (dust, moisture, chemicals). Blind mating simplifies connections in tight spaces. Durability for frequent plugging/unplugging by technicians.

4.Telecom, Data Comms & Audio-Visual:

.Devices: Routers/Modems (service ports), Conference Phones, Portable Speakers, Microphones, Professional Audio Interfaces, Network Test Equipment, Streaming Devices.

.Benefits: Secure data/power connection resistant to accidental pulls. Protects sensitive device ports from damage during servicing. Clean aesthetic integration. Can support high-speed data transfer.

5.Aviation, Aerospace & Military Communication:

.Devices: Avionics Test Equipment, Portable Communication Radios, Rugged Tablets/Displays, Docking Stations, Ground Support Equipment, Soldier-Worn Electronics.

.Benefits: Critical for ruggedness and reliability. High resistance to shock, vibration, and extreme environments. Secure connection essential in mission-critical scenarios. Often meet stringent MIL-STD specs. Sealing against contaminants.

6.Automotive & Transportation:

.Devices: In-Car Charging Ports (passenger use), Diagnostic OBD-II Dongles (semi-permanent), Car Navigation Systems (docking), Fleet Tracking Devices, Test Equipment (ECU programming).

.Benefits: Withstands vehicle vibration. Easy "blind" connection for passengers charging devices. Secure attachment for dongles/data loggers. Protects expensive vehicle ports.

7.Consumer Electronics:

.Devices: Smartphones, Tablets, Laptops (less common), Bluetooth Headsets/Earbuds, Digital Cameras, Drones, Power Banks, E-Readers, Gaming Controllers, Smart Home Devices.

.Benefits: Mass-market driver. Ultimate user convenience. Prevents port damage (a major repair cost). Enables thinner device designs. Supports fast charging and high-speed data. Water/dust resistance (especially for portables).

Why UPE shall be your partner?

1. Professional customization service
2. Fast sample production capability
3. Strict quality control system
4. Processing with imported components
5. High-precision test equipment
6. Reasonable cost control procedures
7. Product environmental standards

How to Place Your Magnetic Connector Order with UPE

1. Submit Your Requirements
Provide details such as:

.Connector type (power, data, hybrid, waterproof, etc.)

.Voltage & current ratings

.Cable length & specifications

.Magnetic polarity & alignment preferences

.Quantity & lead time

Special requirements (IP rating, shielding, certifications, etc.)

. Option 1: Fill out our RFQ (Request for Quote) Form on our website.
. Option 2: Email your specs directly to sunion@upetech.net (or your designated contact).

2. Receive a Custom Quote
Our engineering team will review your requirements.

We’ll provide a competitive quote, including:Pricing/Lead time/Prototyping options (if needed)

3. Approve & Confirm Order
Once the quote is approved, we’ll finalize the design & production schedule.

For new designs, we may offer 3D models or samples for testing.

4. Production & Quality Assurance
UPE manufactures your order with strict quality control checks.

We can provide test reports & certifications upon request.

5. Fast Delivery & Support
Your order ships via your preferred logistics method (DHL, FedEx, sea freight, etc.).

Our team remains available for technical support & future orders.

Payment Term:

50% Deposit (Paid upfront): Covers production costs (materials, labor).

50% Balance (Paid before shipment): Ensures quality control and commitment from both parties.

Payment method:

T/T (Bank Transfer),PayPal ,OCBC Bank

Recommendation:

Use PayPal for samples (safer).

Use T/T for bulk orders (lower fees).

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
