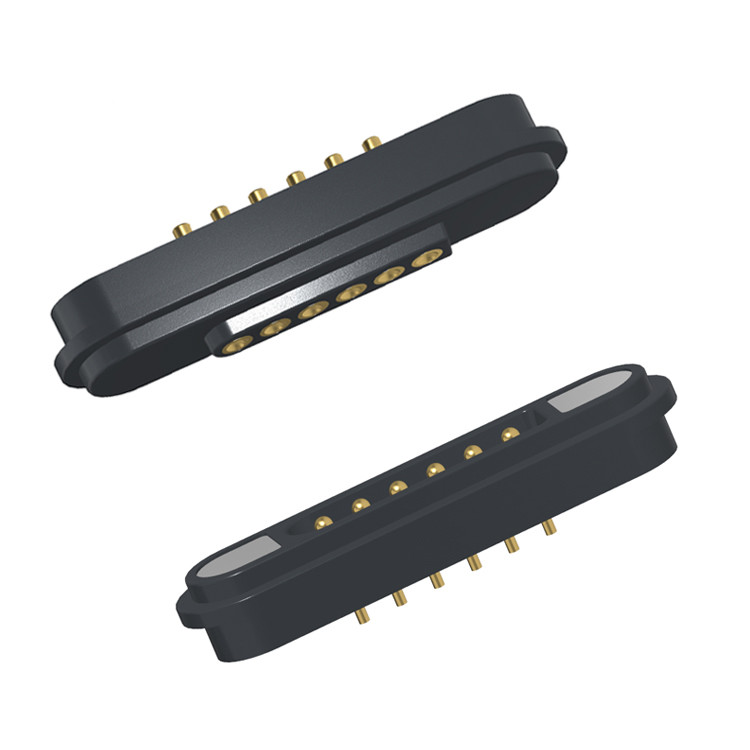

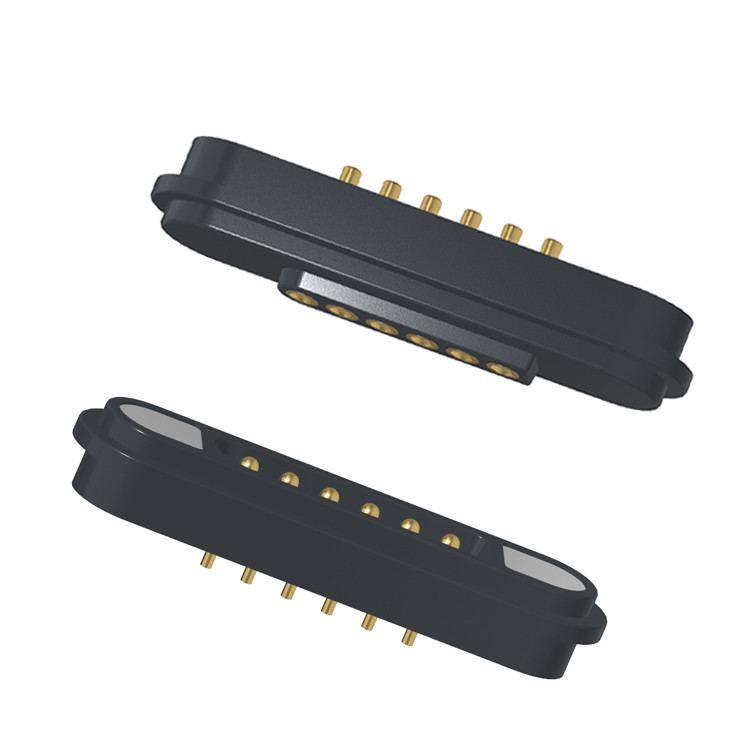

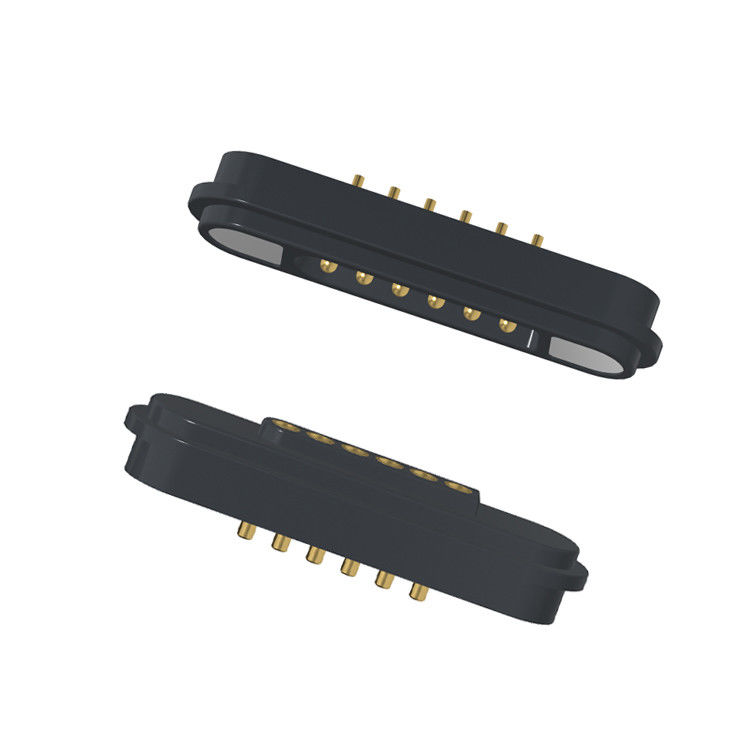

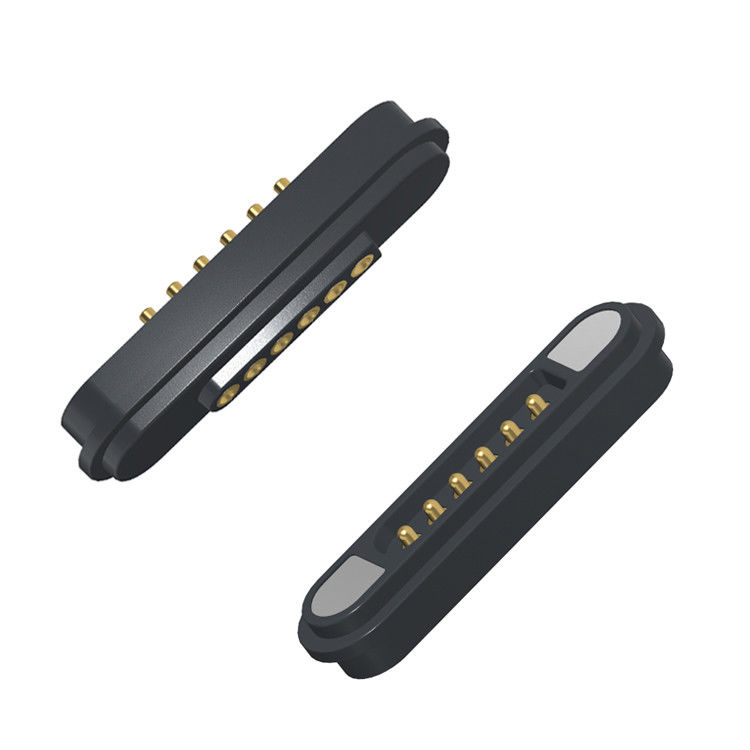

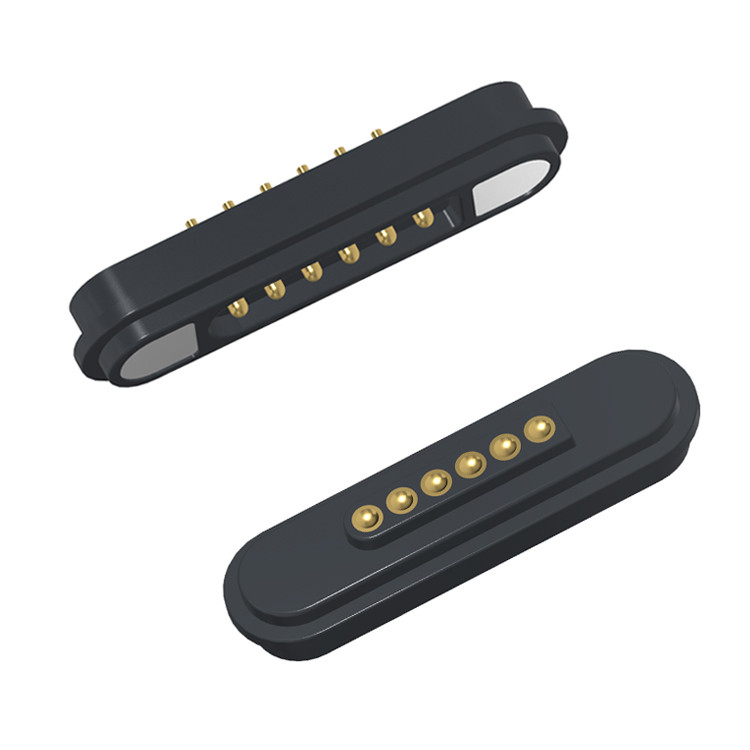

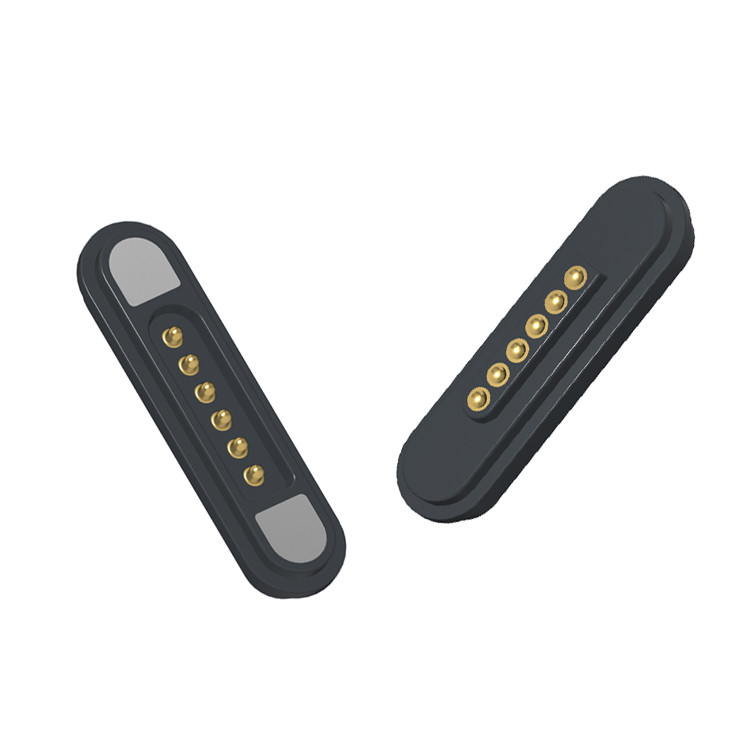

6 Position Magnet Spring-Loaded Pogo Pin Connector Electric Magnetic Power Connector

6 Position Magnet Spring-Loaded Pogo Pin Connector  Electric Magnetic Power Connector.

UPE – Professional Magnetic Connector & Cable Solutions Manufacturer

Customized Design | Reliable Performance | End-to-End Solutions

At UPE, we specialize in designing and manufacturing high-quality magnetic connectors and magnetic cable connectors, tailored to meet your specific requirements. With our in-house team of expert engineers and designers, we deliver innovative, precision-engineered solutions for diverse industries, including consumer electronics, medical devices, IoT, and industrial applications.

To ensure the contact mechanical life of the pogo pin, NEVER compress it beyond the defined working stroke specified in the drawing. Over-compression can damage the internal spring, leading to reduced performance or failure.

Materials:

Housing: Black HTN UL94V-0,HTN (High-Temperature Nylon),UL94V-0 Flame-Retardant

Pogo Pin: Brass C6801 Plating Au 0.125um,High Conductivity, Corrosion Resistance
Female pin: Brass C6801 Plating Au 0.125um,Low Contact Resistance, Wear Resistance
Magnet: N52 NdFeB Plating Ni Cu Ni,High Magnetic Flux (≥1.4T), Corrosion Protection

HTN Housing (UL94V-0): Suitable for high-temperature environments and meets flammability safety standards.

Brass C6801 Pins: Good machinability and conductivity; gold plating enhances durability and contact resistance.

N52 Magnet with Ni-Cu-Ni Plating: High magnetic strength (N52 is the strongest commercial grade) with corrosion-resistant plating.

Mechanical:

Contact force:80g±20g at 1.0mm working storke

Full storke: 1.1mm

Male and female adsorption Life test: 10,000cycle

Electrical:

Rated voltage:DC12V; Rated voltage: 3AMax.

Contact resistance of spring pin: 50 milliohm Max.

Environmental performance:

Operation Temperature: -25℃ to +80℃

Environmental Test: Salt Spray 24 hours

6Pin Male Magnetic Connectors & Female Magnetic Connector Parameter:

6Pin Male Magnetic Connector Technical Drawing

6Pin Female Magnetic Connector Technical Drawing

Advantages of Magnetic Connector:

1. Effortless Connectivity
✔ Automatic Adsorption – Smart, user-friendly design enables instant and secure connections with magnetic alignment.
✔ Anti-Fall Protection – Easily detaches from the charging interface while keeping devices stable, reducing accidental drops.

2. Unmatched Durability
✔ Extended Lifespan – Rated for 100,000–200,000 cycles, ensuring long-term reliability.
✔ IPX8 Waterproof & Dustproof – Female end designed for harsh environments (submersion up to 1M for 30 mins).

3. High-Performance Charging & Data Transfer
✔ Fast Charging (5A–10A) – Supports high-current transmission for rapid power delivery.
✔ High-Speed Signal Transmission – Replaces traditional USB 2.0/HDMI 1.3, enabling Video/Audio signal transmission with stable high-frequency performance.

4. Customizable & Safe Design
✔ Aesthetic Flexibility – Tailored appearance to match your device’s design language.
✔ Anti-Short Circuit & Foolproof – Built-in protection against misuse and electrical faults.

Magnetic connector products application:

Why UPE shall be your partner?

1. Professional customization service
2. Fast sample production capability
3. Strict quality control system
4. Processing with imported components
5. High-precision test equipment
6. Reasonable cost control procedures
7. Product environmental standards
