| Nazwa marki: | UPE |

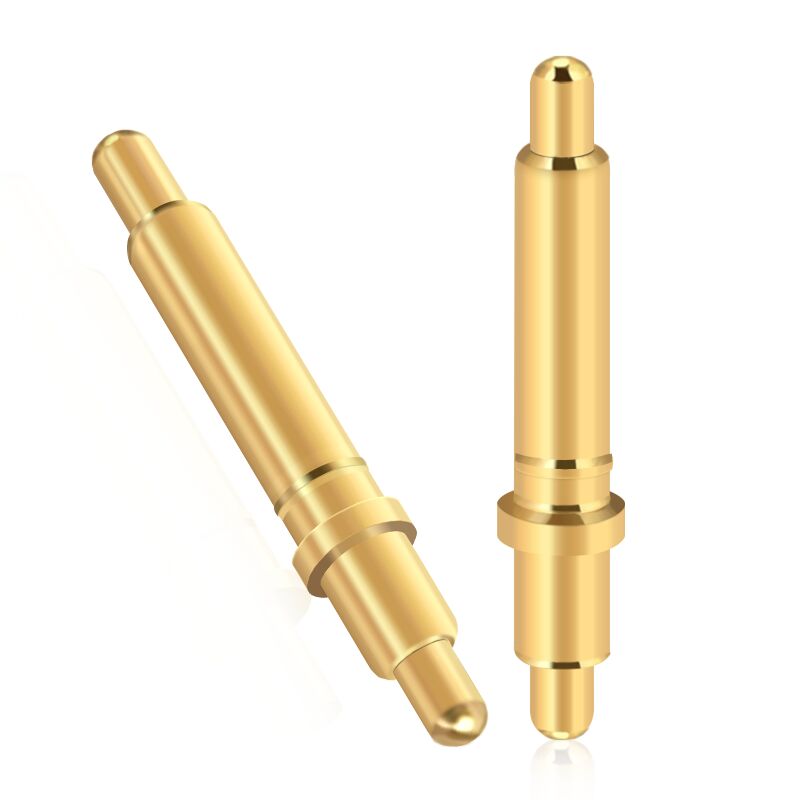

| Numer modelu: | Podwójnie głowa Pogo Pin |
| MOQ: | 10000 |
| Ceny: | $0.1-$0.5 |
| Szczegóły opakowania: | Worki PE |
| Warunki płatności: | T/T |
| Parameter | Specification |
|---|---|
| Name | Double Pogo Pin |
| Plunger Material | Brass C3604 |
| Barrel Material | Brass C3604 |
| Spring Material | SUS304 |
| Mechanical Life | 50,000 cycles Minimum |
| Contact Resistance | 50mΩ Maximum (PIN) |
| Operating Temperature | -40℃ to +130℃ within 24 hours |
| Resistance to Soldering Heat | 260℃±5℃ for 20s±2s |
| Salt Spray Test | 48 Hours |
| Certification | ROHS or REACH Compliant |
| Testing | 100% Open and Short Test |
| Component | Material Options |
|---|---|
| Barrel Material | Brass, Beryllium Copper, Phosphor Bronze |
| Plunger Material | Brass, Beryllium Copper, Phosphor Bronze, Stainless Steel |
| Spring Options | Stainless Steel, Music Wire |
| Plating Requirements | Gold (Au), Silver (Ag), Palladium-Nickel (Pd-Ni) |
| Rated Current | 1A, 2A, 3A, 5A, 15A, 30A (depending on structure) |
| Rated Voltage | DC 12V, 24V |
| Contact Resistance | 30mΩ, 50mΩ Maximum (stillness) |
| Life Test | 50,000 cycles Minimum, 1,000,000 cycles Maximum |
| Reflow Temperature | 265°, 4-5 seconds |
| Test Type | Specification |
|---|---|
| Retention Force | 500±50 cycles per hour, 50,000 cycles minimum |
| Humidity | EIA-364-31, 90-95% RH at 40℃±2℃ for 96 hours |
| Resistance to Solder Heat | EIA-364-56, 265℃+10/-0℃ for 30-35 seconds |
| Salt Spray | EIA-364-26, 5±1% salt solution at 35+1℃/-2℃ for 48 hours |
| Spring Force Test | 100g±20g at working height |
| Temperature Life | EIA-364-17, 85℃±2℃ for 96 hours |
| Solderability | EIA-364-52, 265±5℃, 60/40±5% Sn/pb solder for 4.0-5.0 seconds |
| Contact Resistance | EIA-364-23, 100 mA maximum test current, 20 mV maximum voltage |
